BX700UI APC 700VA UPS

· Automatic Voltage Regulation (AVR)

Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment for 140V – 300V to 230V output

· Telephone dataline surge protection

Provides protection of connected equipment from power surges travelling on telephone lines RJ-11 Modem/Fax/DSL protection (two wire single line)

· USB connection

Use your PC to access additional power protection and management features for your UPS via a USB Port.

· Audible alarms

Provides notification of changing utility power and UPS power conditions with LED status display

· Surge only outlets

Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage

· Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

· Waveform type

Stepped approximation to a sinewave

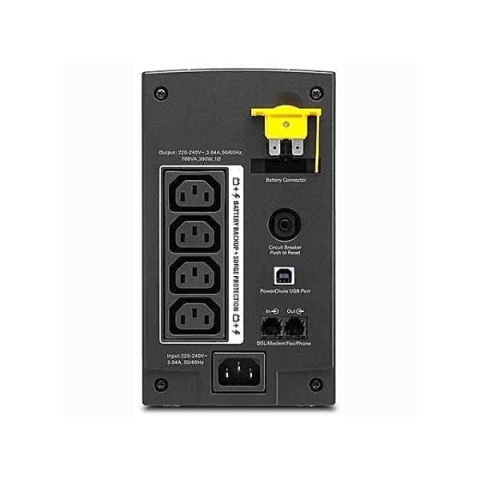

· Output Connections

(1) IEC Jumpers (Battery Backup)

(4) IEC 320 C13 (Battery Backup)

· Transfer Time

4ms typical

· Input Connections

IEC-320 C14
What’s in the Box

APC Back-UPS BX700UI
Power cord
User Manual

Specifications of 700VA Back-UPS BX700UI, 230V, AVR, IEC Sockets, 4 outlets
SKU = DL-CPP51
Size (L x W x H cm)
200 x 115 x 256 mm
Weight (kg)
6
Main material
Polycarbonate
Care label
Handle with care
